We are asked all the time about rev limiter options for the Mallory and Vertex magnetos. Many customers think they need to move away from their mag and go to electronic style ignitions so they can use 2-step rev limiters on the starting line. From top-end only rev limiters, to 2-step capable setups with RPM activated switches, ETC Rev Limiters has it covered!

These rev limiters are terrific. RPM limiting is provided by an adjustable push wheel switch which selects the RPM in increments of 100 from 2,000 to 9,900 RPM. There's no back firing when against the limiter. The unit simply absorbs the energy of the mag while a controlled sequence keeps the motor from revving higher than the preset. These limiters are perfectly safe for use on supercharged methanol applications. No destructive misfiring results from these units. They are smooth!

This "high-range" top-end unit is there when you need it; broken drive train, cavitation, missed shift, or just a heavy foot in the water box.

As we began to upgrade standard points style Mallory and Vertex magnetos to the highest levels in the industry, one problem became clear: the rev limiters available couldn't handle the output.

So, we teamed up with ETC Rev Limiters to offer a versatile and rugged unit that is bulletproof for Mallory and Vertex magnetos from the lowest to the very highest power upgrades available. It is the same physical size as the regular ETC units but has more power absorption capability available.

All rev-limiter units ordered here and sold by us are built and upgraded to our specs. The "FIE version" of ETC's limiters can limit anything you can throw at them. Buy your rev limiter here and never worry about it again. These limiters have been upgraded from standard and proven to handle mags up to 8.5 amps primary.

Due to differences in the waveform between the Mallory and Vertex mags, the rev-limiters for these two styles are different. Please select your application below.

For vehicles without a 12V battery source, special units that run on a 9V battery are available. Call for details.

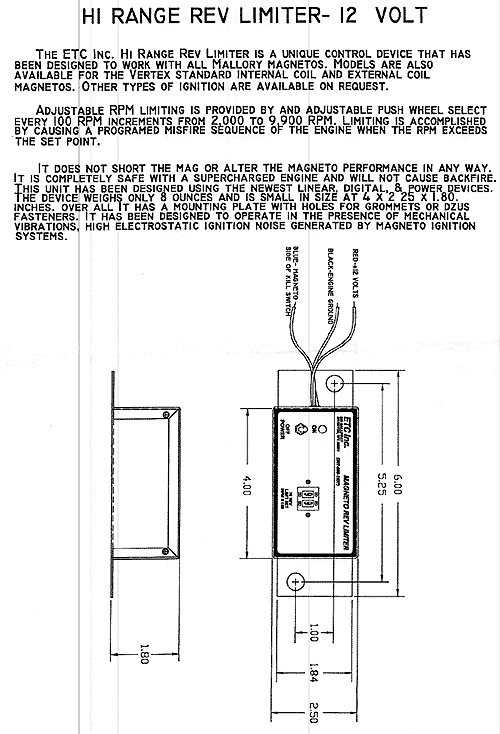

This unit is a single, top-end style rev limiter. CLICK HERE to see the instruction sheet (pops up in separate window).
